Qualitrol 118 Intelligent Transformer Monitor

Qualitrol 506 & 507 Vault Intelligent Transformer Monitor

Qualitrol 506 & 507 Vault Intelligent Transformer Monitor

Intelligent Transformer Monitor



Recommended for use on small and dry type transformers with a typical voltage range of 1.2KV-46 KV.

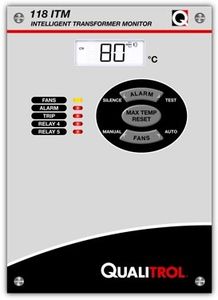

The 118 monitors temperature in up to three (3) Dry-Type transformer windings. The 118 operates Fan, Alarm, Trip and two (2) additional relays by comparing the winding with the highest temperature to pre-selected relay set point temperatures. Front panel LED indication available.  Up to two (2) cooling fan banks can be controlled using the heavy duty fused fan control relays.

Features

· Monitor up to three dry-type transformer windings

· Built-in fan control, fan exerciser, alarming and trip functions

· 0-1 or 4-20mA output for integration with SCADA systems

· CE, UL and CSA certified

Options

· Optional MODBUS communication via RS-485

Applications

The 118 series Intelligent Transformer Monitor is the right choice for all your Dry Type Transformer monitoring and control needs.

Qualitrol 506 & 507 Vault Intelligent Transformer Monitor

Qualitrol 506 & 507 Vault Intelligent Transformer Monitor

Qualitrol 506 & 507 Vault Intelligent Transformer Monitor

Transformer Condition Monitoring



Recommended for use on small transformers with a typical voltage range of 38 KV-138 KV

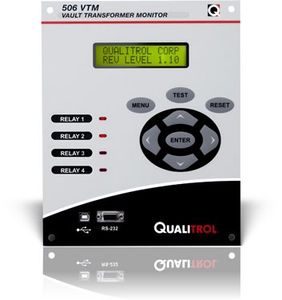

Vaults can be dangerous. With Qualitrol’s 506 VTM, you can move to real-time continuous remote monitoring. Qualitrol offers a fixed or wireless solution to monitor your assets remotely.

Works with These Assets:

Transformer

Vault Transformer

Features

· Implement Condition Based Monitoring

· Compare direct vs simulated winding temperature

· Minimize personnel time in the vault

· The power to know your transformer health immediately with Translife™

· Superior temperature control for increased transformer loading

Applications

Remote and local monitoring of oil-filled transformer parameters, third party systems, alarming and advanced control of cooling systems.
